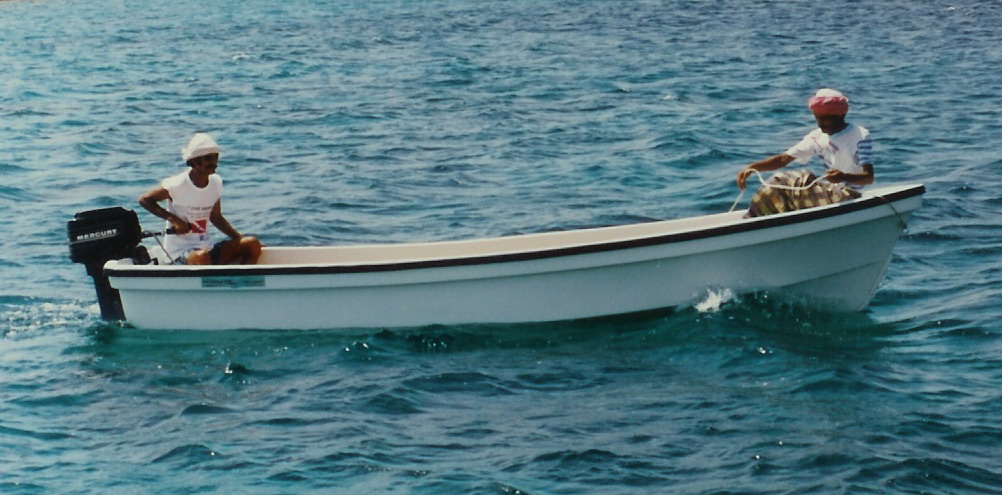

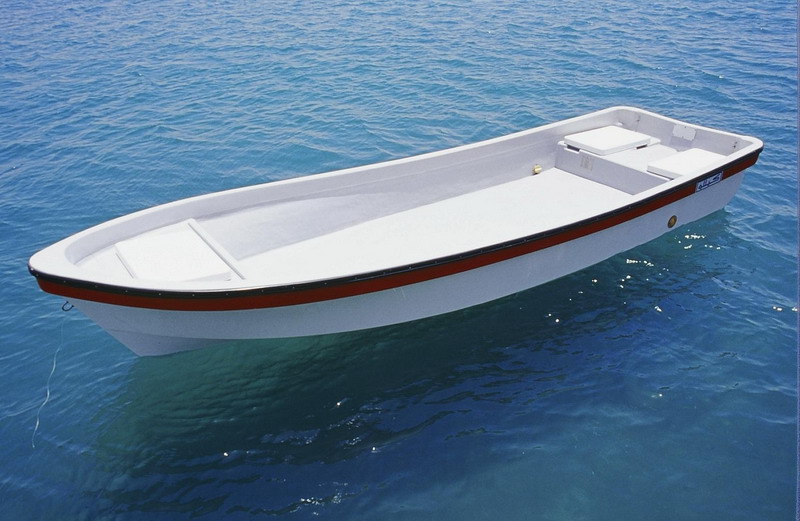

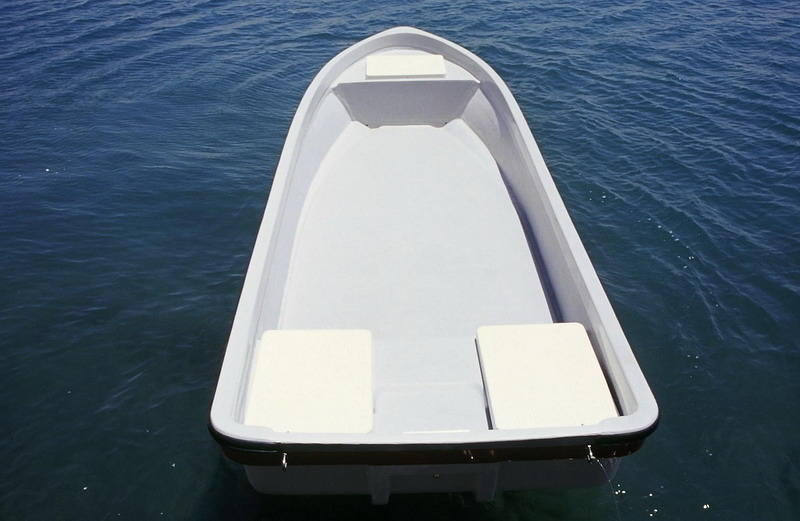

FISHING BOAT - KF-477



DIMENSIONS:

Length   :   4.77    m   (15 6)

Width     :   1.49    m

Depth     :   0.51   m

Height    :   0.77   m.

Weight   :   170    kgs



Assembled in components which as follow:

 a-     Hull, Bottom stiffeners, Wood laminated with fiberglass on strake stringers. Two longitudinal girders & across frames molded in one piece filled with polyurethane foam to provide strength and good flotation.

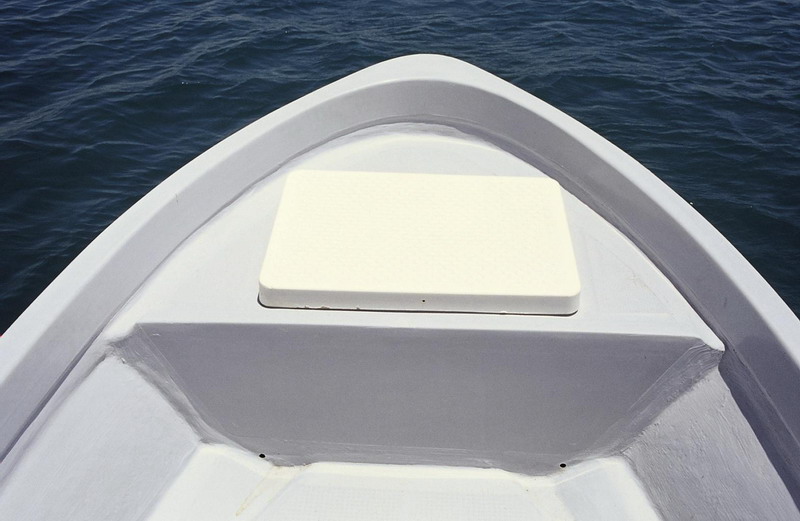

b-     Deck & Floor, A combination of fwd. floor, aft storage & sides molded in one piece.

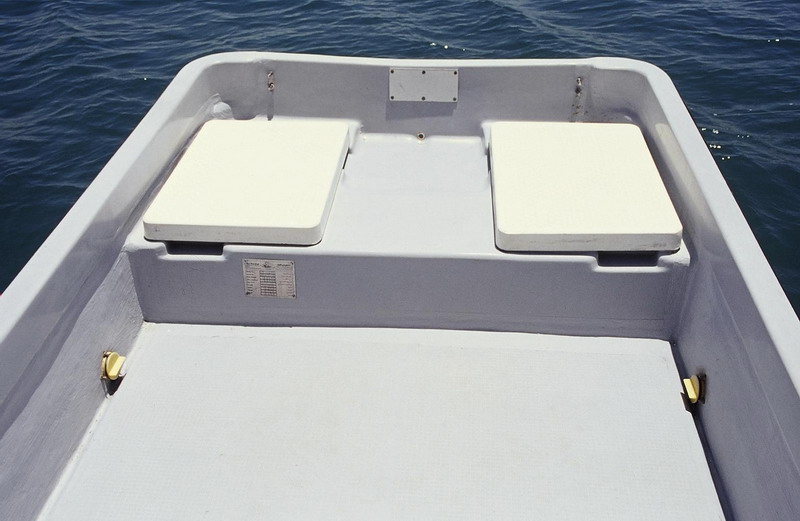

c-      Aft storage with two hatch covers for seating convenience.



STANDARD EQUIPMENTS:

1.  Gunwale rubber

2.  S/Steel U bolts, 1 large size at front and 2 medium size at transom

3.  Side drain scupper.

4.  Bottom drain plug.

5.  Motor well drain tube.



OPTIONAL EQUIPMENT:

  1. Top shading canopy (Knock out style)  3 pipe frames Dia. 22.mm

  2. Cleats 5

  3. Live well.

  4. Compact Console.
